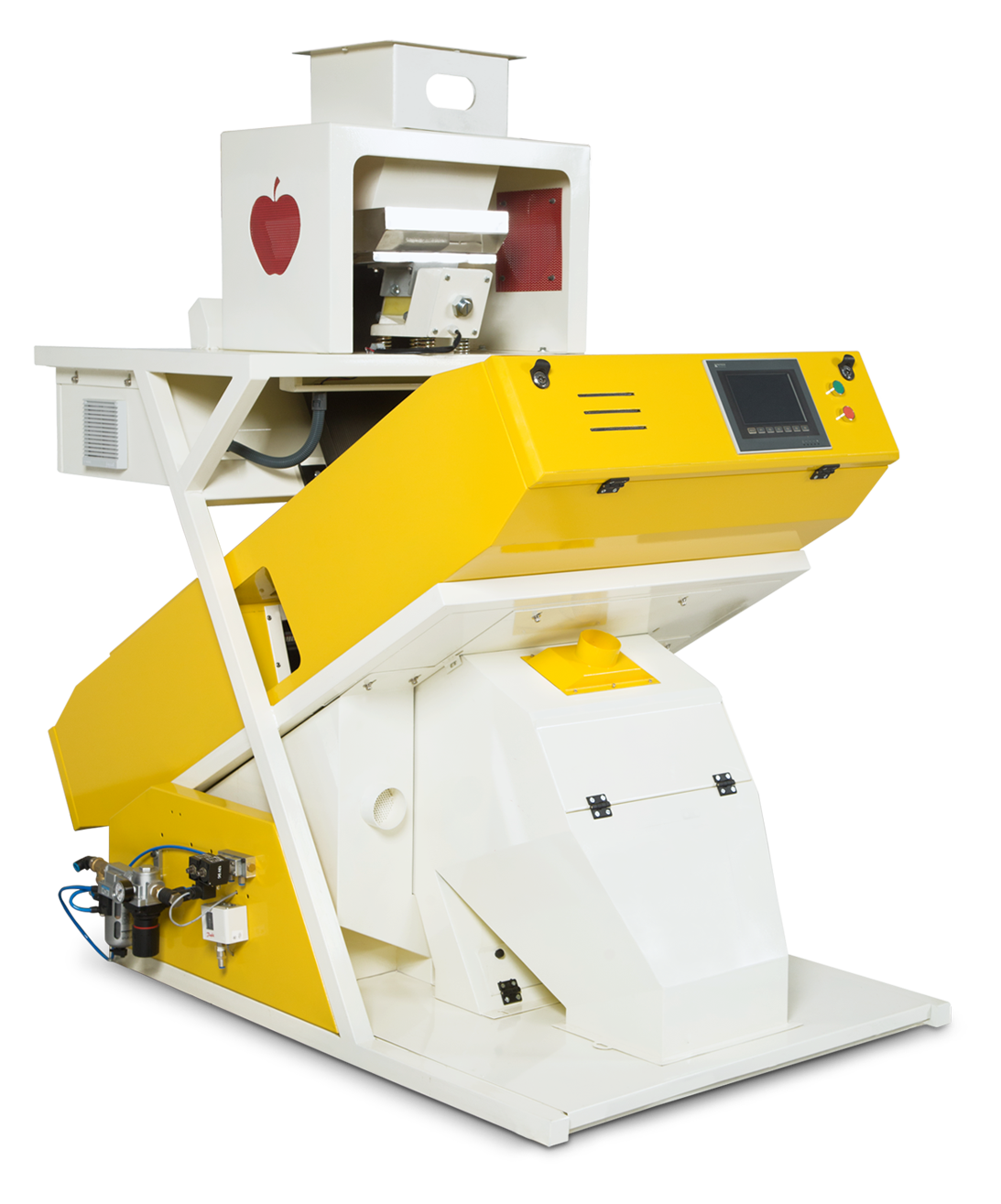

RGB Claz Series Color Sorter
RGB Claz
APPLE RGB CLAZ Series is our new range of sorting machines which is a highly performable and reliable color sorting machine. This color sorting machine is designed with specialized features for a new generation and a good feel for Food Processing Industries. APPLE RGB CLAZ uses high resolution line scan cameras which inspect the product which is to be sorted.
The cameras images every particle by Image Processing Technology according to the algorithm, This advanced image processing technology severs huge level of defect detection which results in effective sorting. in which customers themselves can fix their needs and the camera what they want to sort which in terms reduces carry over.
APPLE RGB CLAZ ‘s image processing system s uses high resolution cameras and an advanced image processing system to process every food grain. This machine can help you to increase your profitability by achieving the highest yield and market value. As we said the Intelligent image processing algorithm enhances the sorting efficiency.
| Name | Model | Cap T/H | Power KW | Voltage | Sorting Accuracy % | Rejection Ratio | Air Requirement | L*B*H in (mm) |
|---|---|---|---|---|---|---|---|---|
| TR 1 | TRX63 | 0.5-1 | 1.2 | Ac 220v/50HZ | ≥99.99 | ≥10:1 | 18 CFM | 1066*1592*1810 |
| TR 2 | TRX126 | 1-2.5 | 2 | Ac 220v/50HZ | ≥99.99 | ≥10:1 | 36 CFM | 1665*1655*1927 |
| TR 3 | TRX189 | 1.5-4.0 | 2.5 | Ac 220v/50HZ | ≥99.99 | ≥10:1 | 56 CFM | 1665*1655*1927 |
| TR 4 | TRX252 | 2.5-6.0 | 3 | Ac 220v/50HZ | ≥99.99 | ≥10:1 | 72 CFM | 2297*1655*1927 |
| TR 5 | TRX315 | 3.0-7.0 | 3.6 | Ac 220v/50HZ | ≥99.99 | ≥10:1 | 95 CFM | 2297*1655*1927 |
| TR 6 | TRX378 | 4.5-8.0 | 4.2 | Ac 220v/50HZ | ≥99.99 | ≥10:1 | 108 CFM | 2990*1685*1980 |
| TR 7 | TRX441 | 5.5-10 | 5 | Ac 220v/50HZ | ≥99.99 | ≥10:1 | 130 CFM | 2990*1685*1980 |
Specifications may be changed without notice due to continuous improvement in technical develoipments.
Sorting accuracy, Rejection ratio and Capacity depends upon quality of input products and quality of sorting required. Capacity mentioned in the catalogue are assuming at 0.5% contamination in the input.
The capacity of air required depends on the contamination percentage and quality of sorting required.
- CLAZ allows you to capture the product on real time with high resolution 5400 pixel CCD Cameras for better Sorting accuracy to sort multigrains.
- CLAZ Model equipped with ALTERA chip processor for high response and fast data transfer.
- Imported customized spotlight low temperature rise illuminating LED system adopts cold shadow less light source, longer lifespan, high lighting efficiency.
- Specially imported extruded aluminium chutes provide high capacity, long durable and excellent products flow. Easily serviceable imported high quality ejector with 12 billion cycles life, low air consumption yields better sorting accuracy and minimize carry over ratio.
- Ultra high resolution 12 Inches intelligent interface more convenient operation. You can select the color, shape and rice of the material. So that system itself automatically recognize and sort that material which you selected.
- CE Certified components, Power supplies and mechanical construction designed by well trained experts ensure the machine made perfect.
- Guaranteed service backup available 24*7 hour consultation and provide with well trained engineers placed all over India and abroad.
The above dimensions are in mm for the model of CLAZ Series.
For other model dimensions, Please contact the manufacturer.
