Coffee Color Sorter
Magic
| Model | MAGIC 1 | MAGIC 2 | MAGIC 3 |
|---|---|---|---|
| Power Required | 2.0 KVA | 2.0 KVA | 3.0 KVA |
| Operating Voltage | 220V / 50 HZ | 220V / 50 HZ | 220V / 50 HZ |
| Air Requirement** | 10 HP | 10 HP | 15 HP |
| Dimensions LxBxH (mm) | 1530 x 1283 x 1908 | 1530 x 1283 x 1908 | 1530 x 1270 x 1940 |
Specifications may be changed without notice due to continuous improvement in technical develoipments.
Capacity depends upon quality of input products and quality of sorting required. Capacity mentioned in the catalogue are assuming iat 0.5% contamination in the input.
The capacity of air required depends on the contamination percentage and quality of sorting required.
- Specially treated extruded aluminium chutes for different product like coffee, cashew, raisin, dhall, rice, tamarind seeds, wheat and sesame etc.,
- HIgh resolution 2048 pixel line scan camera for better sorting to reject even spot defects
- Multi grain sorting facilities available for different products like cashew, dhall, rice & pulses
- Advanced high speed digital processing circuit helps very accurate results & reliability
- Automatic cleaning system with adjustable timing facilities for different commodities
- 7" LED colour touch screen (HMI) facilities, can store upto 1000 programs for various products
- Double side cameras to capture both sides of products for the best sorting results
- Automatically stops the machine when air pressure is low
- Reduced air consumption due to highly precised nozzle

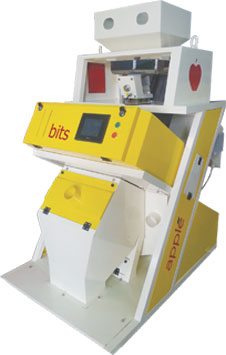

Bits
| Model | Mini 1 | Mini 2 |
|---|---|---|
| Power Required | 1 KVA | 1 KVA |
| Voltage / Frequency | 230v / 50 HZ | 230v / 50 HZ |
| Dimensions LxBxH (mm) | 918 x 1325 x 1607 | 918 x 1325 x 1607 |
| Air Requirement | 5 HP | 5 HP |
Specifications may be changed without notice due to continuous improvement in technical develoipments.
Capacity depends upon quality of input products and quality of sorting required. Capacity mentioned in the catalogue are assuming iat 0.5% contamination in the input.
The capacity of air required depends on the contamination percentage and quality of sorting required.
- Specially treated extruded aluminium chutes for different product like coffee, cashew, raisin, dhall, rice, tamarind seeds, wheat and sesame etc.,
- HIgh resolution 2048 pixel line scan camera for better sorting to reject even spot defects
- Multi grain sorting facilities available for different products like cashew, dhall, rice & pulses
- Advanced high speed digital processing circuit helps very accurate results & reliability
- Automatic cleaning system with adjustable timing facilities for different commodities
- 7" LED colour touch screen (HMI) facilities, can store upto 1000 programs for various products
- Double side cameras to capture both sides of products for the best sorting results
- Automatically stops the machine when air pressure is low
- Reduced air consumption due to highly precised nozzle
RGB TR Series
| Model | TR 1 | TR 2 | TR 3 | TR 4 | TR 5 | TR 6 | TR 7 |
|---|---|---|---|---|---|---|---|
| Capacity [T/H] | 0.5-1 | 1-2.5 | 1.5-4.0 | 2.5-6.0 | 3.0-7.0 | 4.5-8.0 | 5.5-10 |
| Power [KW] | 1.2 | 2 | 2.5 | 3 | 3.6 | 4.2 | 5 |
| Voltage [V] | Ac 220v,50HZ | Ac 220v,50HZ | Ac 220v,50HZ | Ac 220v,50HZ | Ac 220v,50HZ | Ac 220v,50HZ | Ac 220v,50HZ |
| Sorting Accuracy [%] | >=99.99 | >=99.99 | >=99.99 | >=99.99 | >=99.99 | >=99.99 | >=99.99 |
| Rejection Ratio | >=10:1 | >=10:1 | >=10:1 | >=10:1 | >=10:1 | >=10:1 | >=10:1 |
| Air Requirements in CFM | 18 | 36 | 56 | 72 | 95 | 108 | 130 |
| LxBxH in [mm] | 1066 x 1603 x 1748 | 2297 x 1655 x 1912 | 2297 x 1655 x 1912 | 2297 x 1655 x 1912 | 2297 x 1655 x 1912 | 2820 x 1655 x 1912 | 2820 x 1655 x 1912 |
Specifications may be changed without notice due to continuous improvement in technical developments.
Sorting accuracy, Rejection ration and Capacity depends upon quality of input products and quality of sorting required. Capacity mentioned in the catalogue are assuming iat 0.5% contamination in the input.
The capacity of air required depends on the contamination percentage and quality of sorting required.
- Camera
- Intelligent Processing Algorithm
- LED Lamp
- Chutes
- Ejector
- Human Machine Interface (HMI)
- Automatic Reflector Adjustment
- Reliablity
- Service
